Turntable Reel Stretch Wrapper

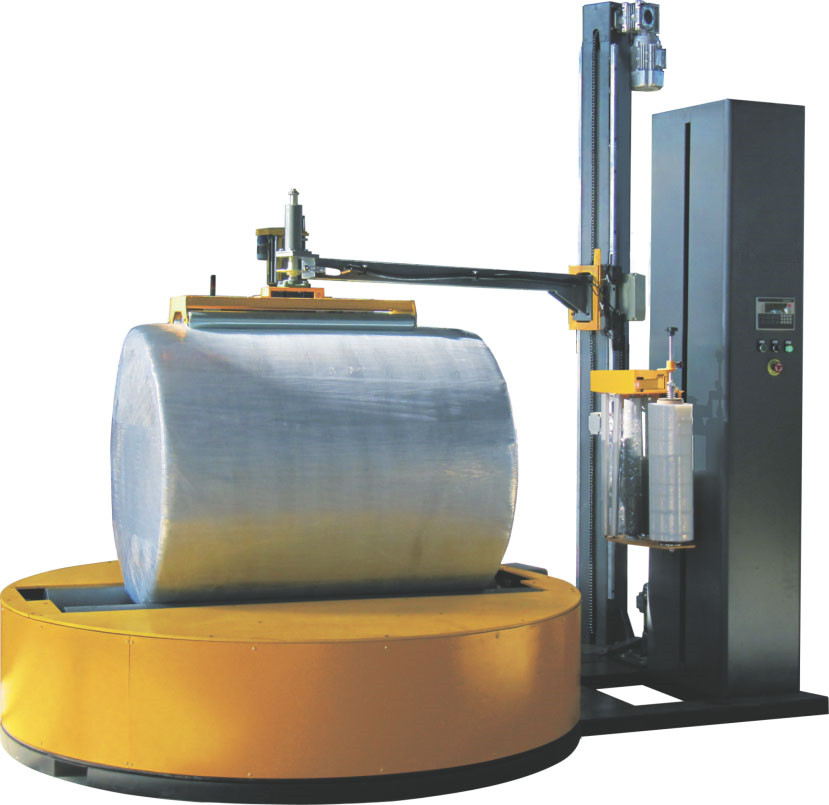

Turntable reel stretch wrapper

Turntable reel stretch wrapper is designed for packing rolls of paper, film, dipped pipe, cord fabric and similar materials manufactured in reels. It is ideal for reel axial wrapping-across the cylindrical diameter then along the longitudinal axis. This machine wraps reel completely for moisture water & dust proof packing and protects the products.

Technical Data

Roll Diameter: 600-1500mm

Roll width: 500-1600mm

Roll Weight: Max. 1500kg

Packing efficiency: 20-30 rolls/H

Turntable diameter: 2000mm

Turntable speed: 3-12rpm

Turntable height: 490mm

Machine weight: about 900kgs

Power supply: 380V, 3P, 50HZ

Machine dimension: 3090(L) ×2000(W) ×2200(H) mm (to be designed)

Packing Material: LLDPE Stretch Film.
Film width : 500mm
Film thickness: 17 - 35 microns
Film roll inner Core Dia.: 76.2 mm
Film roll outer Dia.: max. 240mm

Control System

PLC control system, HMI easy to operate
3-12RPM variable turntable speed by frequency changer
Variable carriage up/down speed
Safety push-pull emergency stop button

Film carriage

Powered pre-stretch system up to 200% to the film length

Film delivery speed by separate DC drive motor

Film dance-bar with variable speed output

Turntable

2000mm Diameter structure steel plate

Turntable driven by wheel in nylon material.
Position turntable alignment
Soft start/stop
Heavy duty chain drive
