Entry Level Pallet Wrapper
Pallet wrappers can be used in industries like glassware, hardware, electronics, food and beverage, construction material, as well as chemical, etc.
The wrapping realize dust-proof, moisture-proof, less packaging cost, improve packing efficiency, and reduce product loss in transportation.
Turntable
Soft start/soft stop
Go home position after wrap cycle finished
Heavy duty chain drive
Speed inverter adjustable

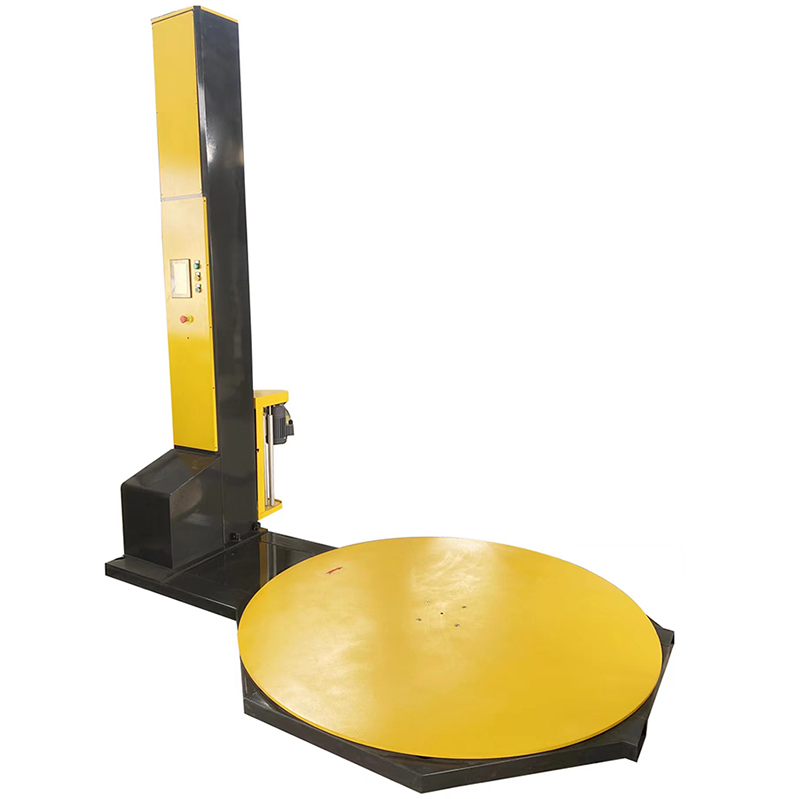

Entry level turntable pallet wrapper is designed with a rotating turntable to hold pallet, and film carriage delivers stretched film onto pallet while turntable rotating. The machine is widely used in different industries for logistics and goods packaging. Pallet wrappers can be used in industries like glassware, hardware, electronics, food and beverage, construction material, as well as chemical, etc.
The wrapping realize dust-proof, moisture-proof, less packaging cost, improve packing efficiency, and reduce product loss in transportation.
Machine and wrapping size
Max load size(mm): 1200mm(L)*1200mm(W)*2400mm(H)
Turntable diameter: 1650mm
Tower height: 2700mm
Turntable thickness: 10mm
Turntable height: 76mm
Turntable speed: 0-12rpm (adjustable, soft start & stop)
Bearing: Max 2000kgs
Electrics: 220V, 50HZ
Specification
Sinolion display with HMI control
Photo-eye pallet height sensor
0-9 separate top,bottom&up-down wrap count selectors
Reinforce wrap allow more wrap on same location
0-12RPM variable turntable speed by frequency inverter
Separate variable carriage up/down speed
Cycle pause capability
Film carriage
Powered pre-stretch system up to 1:3 to min film consumption (Pre-stretch ratio can be specially made)
Carriage door opens for effortless roll change and thread film.
Film delivery & up down variable speed by separate AC Drive Motor.
Heavy duty double-chain carriage lift, calm and safety.
Turntable
Soft start/soft stop
Go home position after wrap cycle finished
Heavy duty chain drive
Speed inverter adjustable
