Plaster Board Stretch Wrapping System

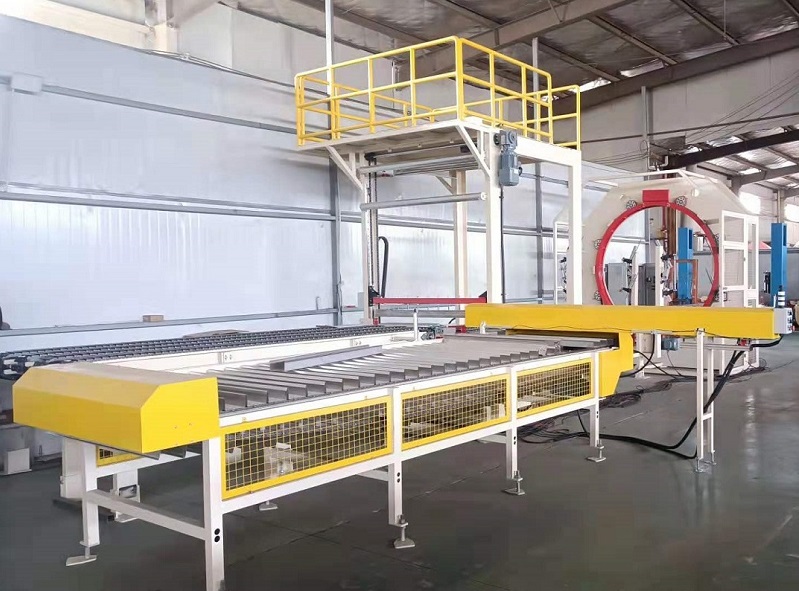

Horizontal ring wrapper wraps plate that is delivered to wrap position by conveyor or a platform. It is designed for logistic solution of industries like profiled product, window and doors, furniture, plasterboard, rock wool, etc.
Automatically insert wood strip under plaster board, this is to form a pallet shape for easy transportation and storage.
Plaster board Wrapping system wraps board that is delivered to wrap position by conveyor or manipulator. It is designed for logistic solution of industries like profiled product, including: window and doors, furniture, plasterboard, rock wool, etc.
Customized wood strip insert unit automatically insert wood strip under plaster board, then it forms a pallet shape under board for easy transportation and storage.
The wrapping realize dust-proof, water-proof, less packaging cost, improve packing efficiency, and reduce product loss in transportation.
Specification
Rotating ring inner diameter | 1800mm |
Wrapping dimension | Width: 600-1220mm; Height: 600-900mm; Length: 1,800-18,000mm |
Rotating ring speed | Max. 33rpm |
Compressed air pressure | 0.5Mpa |
Air consumption | 10L/M |
Motor power | rotating ring: 2.2kw 380V, 60HZ, 3phase |
Rotating ring
Inner diameter: 1800mm;
Rotating speed: max. 33RPM, frequency adjustable
Gearbox motor: SEW brand, 2.2kw;
Film carriage
Mechanical stretch film carriage
Width: 250mm;
Core size: 3’’;
Film roll diameter: max 240mm
Thickness: 14-35μm
Control System
PLC electric control system, touch screen panel
Ring rotating speed controlled by the inverter
In-feed & out-feed conveyor speed controlled by the inverter
Start and finish cycles are controlled by photocells
Auto film cutting and conveying unit
Auto film feeding and cutting unit:
Hold the film head for feeding;
Automatically cut the film after wrapping and hold film for the next pallet;
Pneumatic components: Festo brand
Air consumption: 1000ml
Air pressure: 0.4-0.6Mpa
Infeed and out feed roller conveyor
Roller material: galvanized carbon steel
Conveyor speed: 12m/min (max.) Speed frequency adjustable
Conveyor height: 700mm;
Roller diameter: 50mm(Subject to final design);
Effective conveying width: 1800mm;
Gearbox motor power: 0.75kw/1.5kw
